OWC Thunderbolt 5 Dock – One Cable, Whole Desk

Thunderbolt 5 laptops finally have the bandwidth for fast storage and several high-res screens at once, but only if the dock keeps up. The OWC Thunderbolt 5 Dock turns one cable into 11 ports: three downstream Thunderbolt 5 ports, 2.5GbE, SD and microSD UHS-II, three USB-A ports and audio, plus 140 W of laptop charging. At Soundium it is the all-round OWC dock for studios and editing desks.

Key Features

• Three downstream Thunderbolt 5 ports: Up to 80Gb/s each way, 120Gb/s with Bandwidth Boost, and three independent device chains.
• Multi-display support: Up to three 8K 60 Hz or three 4K 144 Hz displays on Thunderbolt 5 PCs; Macs run up to two external screens per port.
• 140 W laptop charging: Enough for a MacBook Pro or high-end Windows laptop under load.
• SD and microSD UHS-II: Card offload on the front panel at up to 312 MB/s.
• 2.5GbE and three USB-A: Wired network for NAS work, two USB-A 10Gb/s and one 5Gb/s for keyboards, keys and drives.
• Fanless aluminum build: Silent operation, power button and security slot.

Customer Benefits

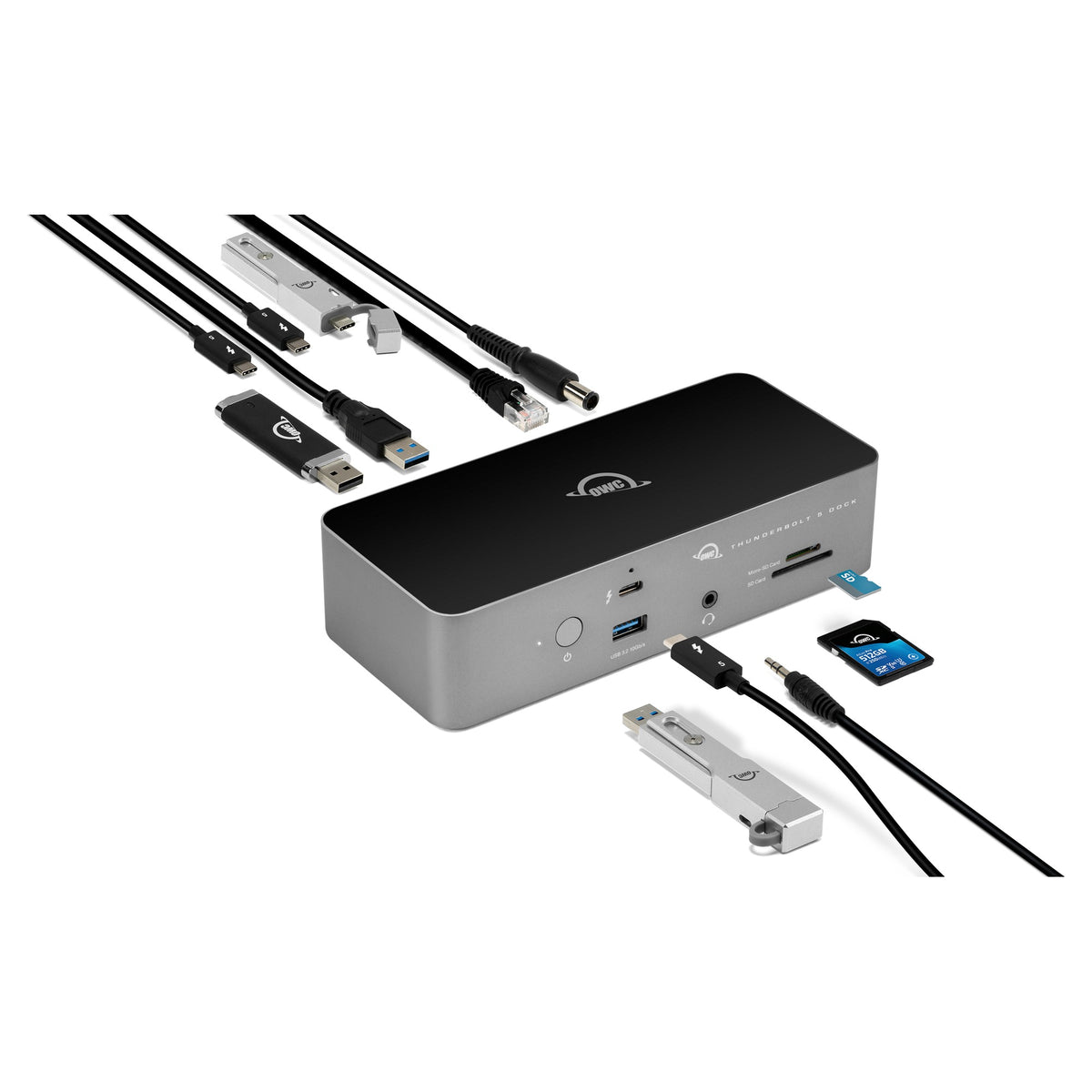

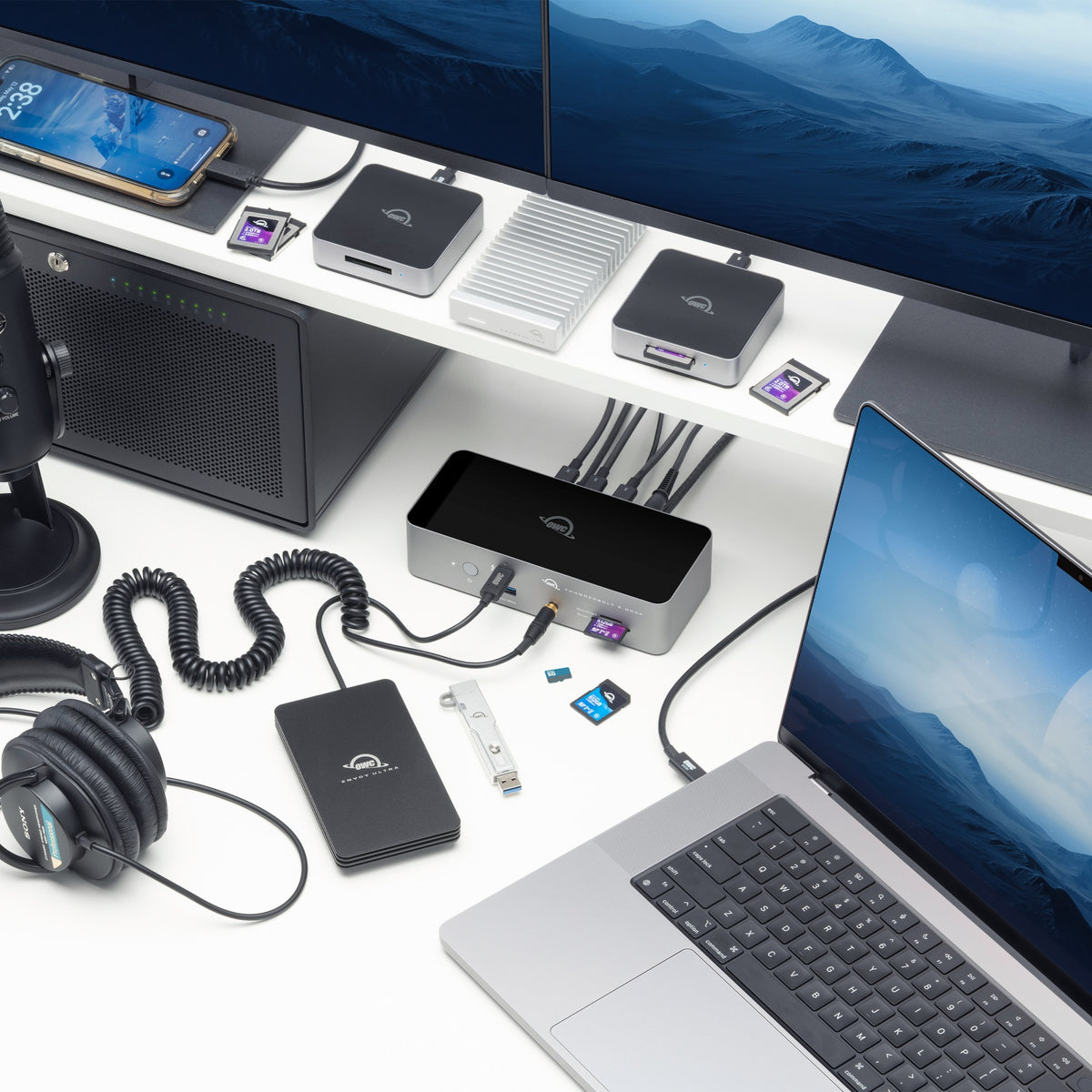

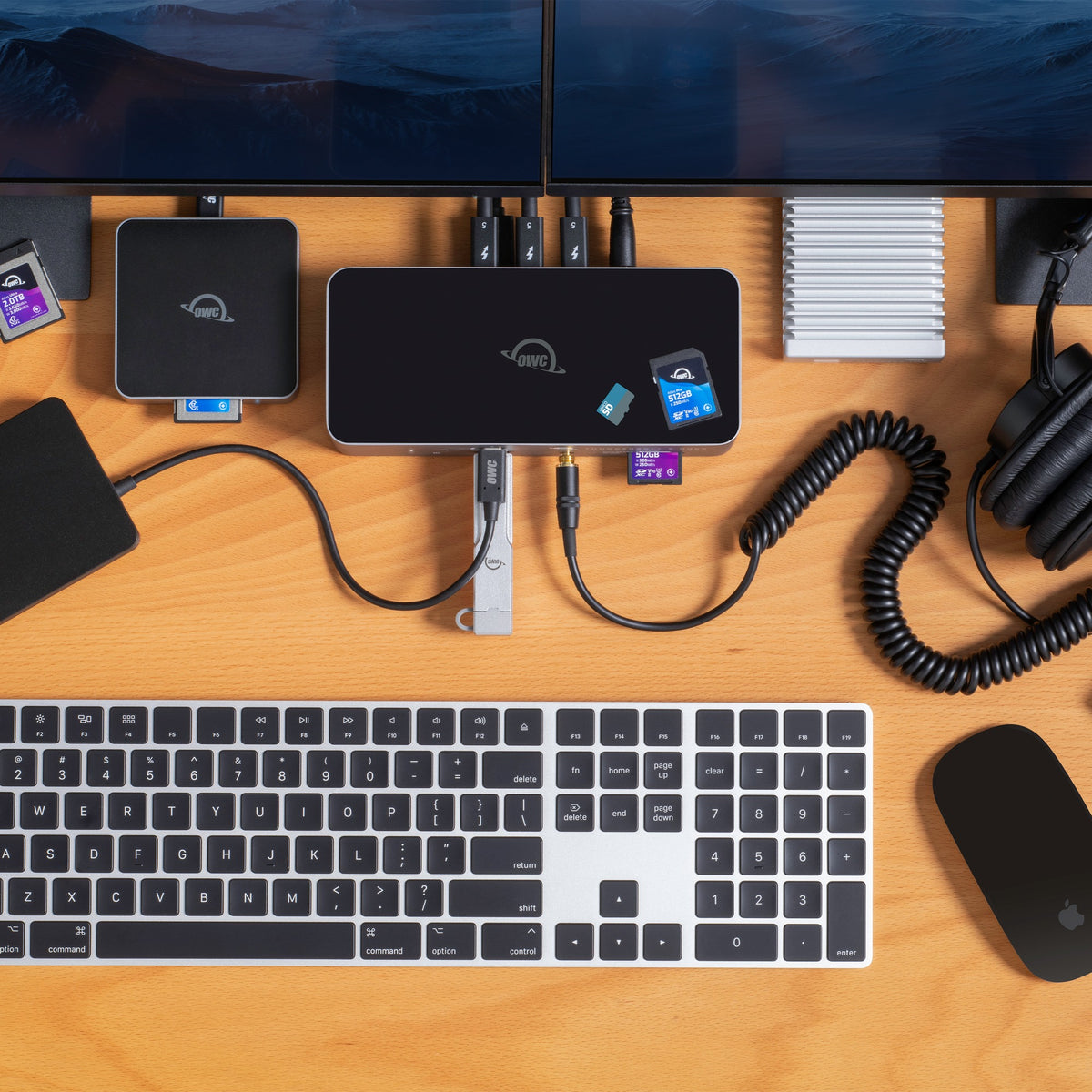

Everything a laptop desk needs lives behind one Thunderbolt 5 cable: SSDs and RAIDs at full speed, displays, network, cards, audio interface or headphones on the 3.5 mm jack, and charging. Unplugging one device chain doesn't interrupt the others, and OWC Dock Ejector unmounts all drives with one click before you pack up.

Quick Specs

• Host connection: Thunderbolt 5 (USB-C), up to 80Gb/s, 140 W charging

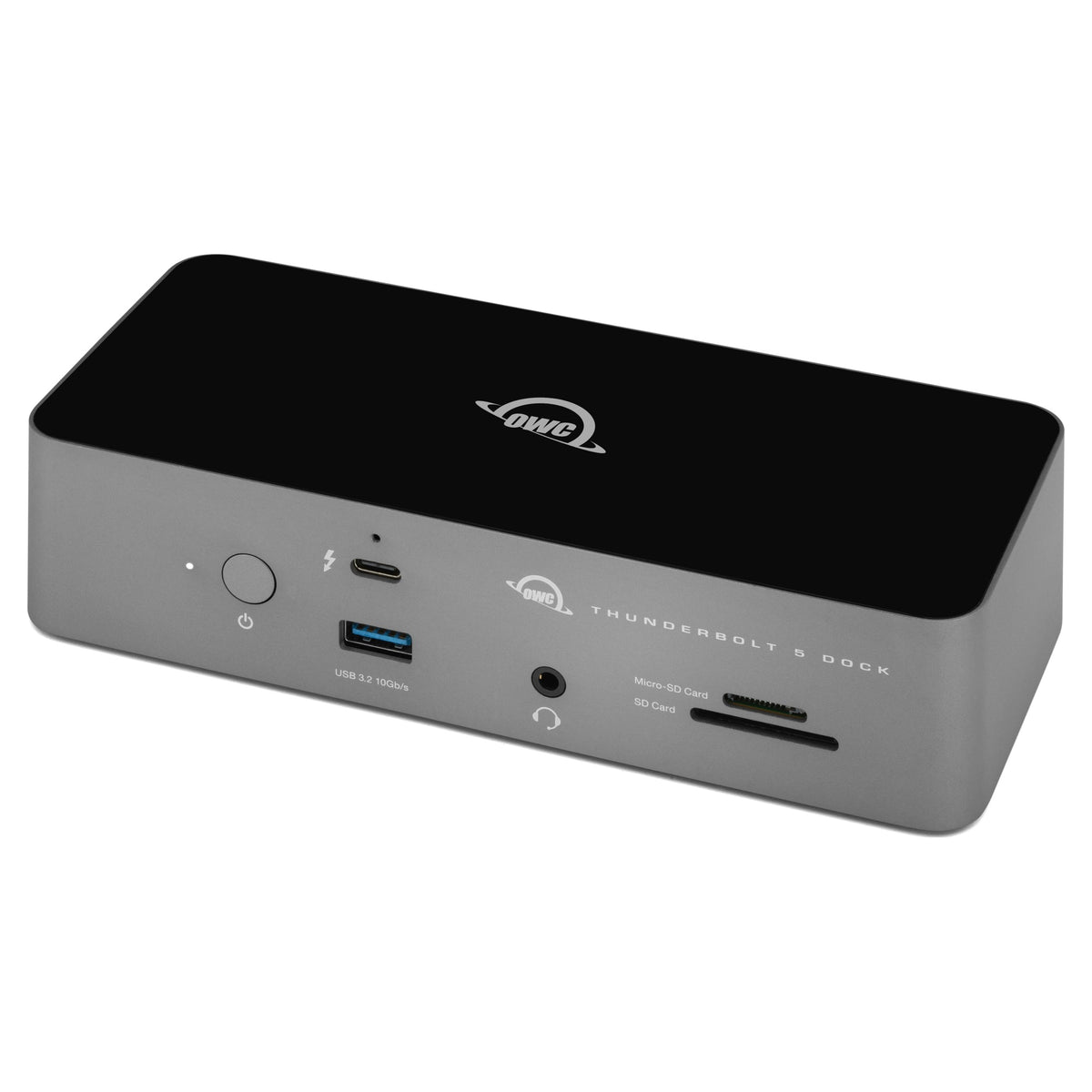

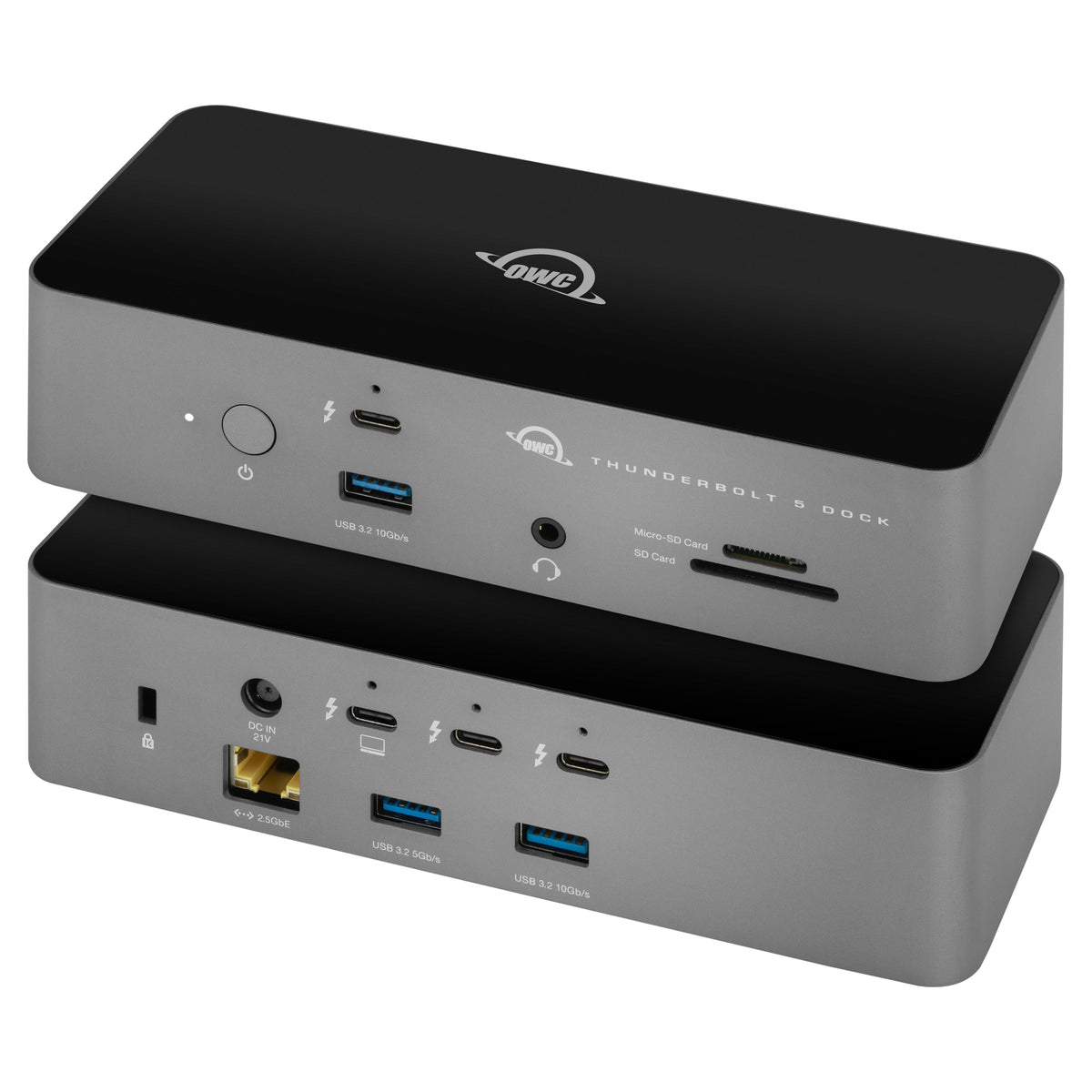

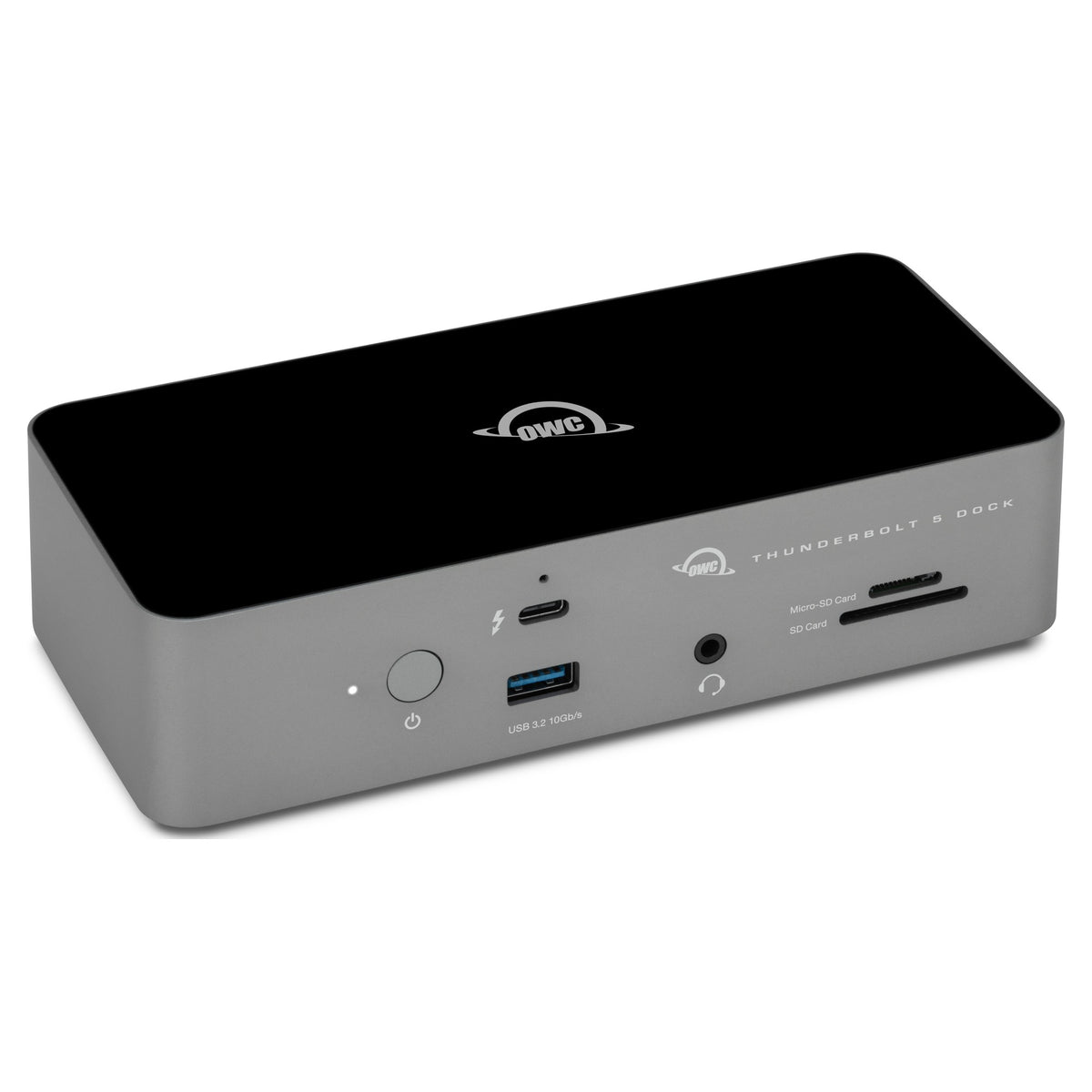

• Front ports: 1x Thunderbolt 5, 1x USB-A 10Gb/s, SD UHS-II, microSD UHS-II, 3.5 mm audio combo

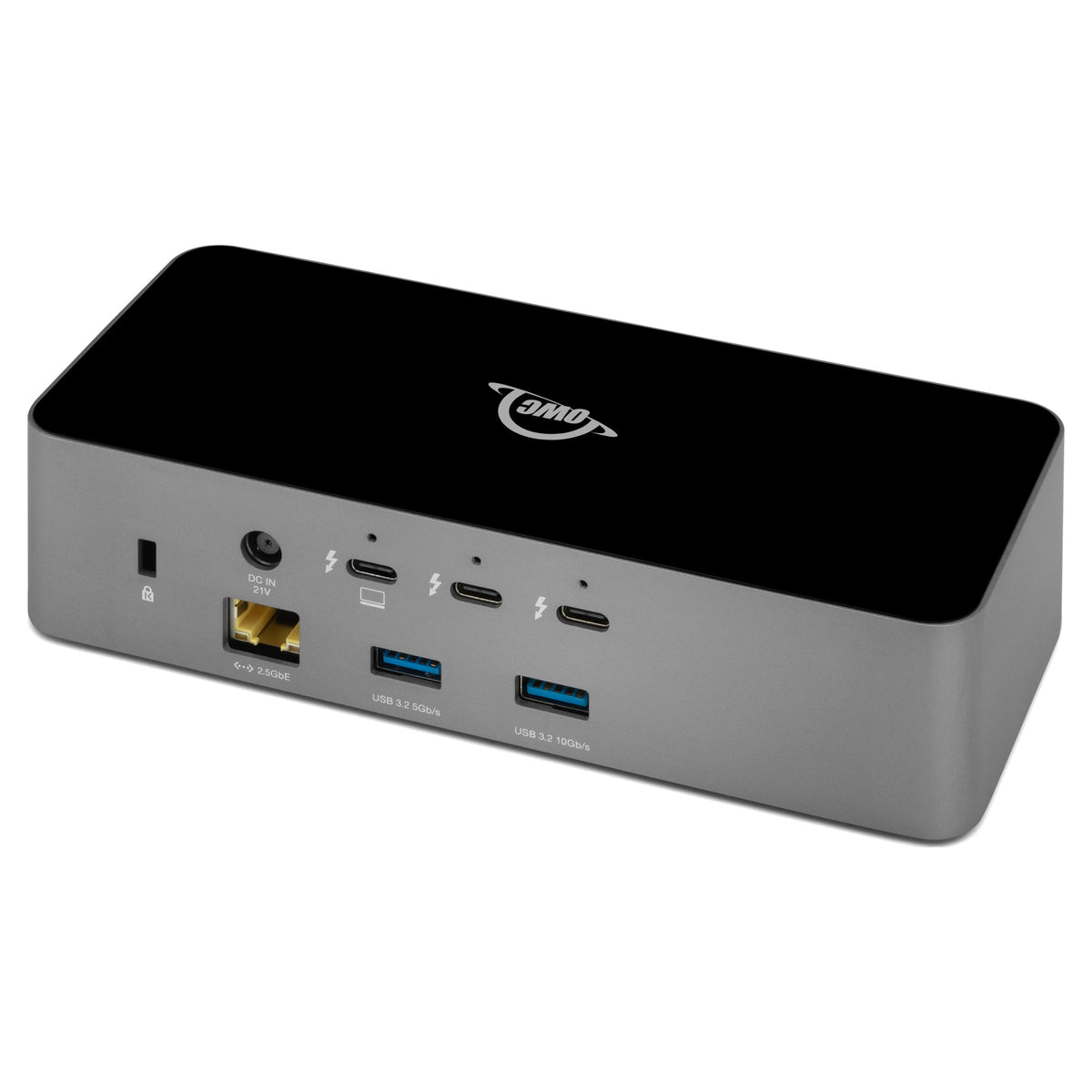

• Rear ports: 2x Thunderbolt 5, 1x USB-A 10Gb/s, 1x USB-A 5Gb/s, 2.5GbE RJ45, DC in, security slot
• Device port power: 15 W per Thunderbolt 5 port, 7.5 W per USB-A
• Display support: Up to 3x 8K 60 Hz or 3x 4K 144 Hz (host dependent)
• Housing: Aluminum, Space Gray, fanless
• Dimensions: 178 × 78 × 42 mm
• Weight: 530 g

In the Box

• OWC Thunderbolt 5 Dock
• 1.0 m Thunderbolt 5 cable
• External power supply with power cable
• OWC Dock Ejector and OWC Innergize software (download)

Compatibility

Works with Thunderbolt 5, Thunderbolt 4, USB4 and USB-C hosts, plus Thunderbolt 3 Macs; macOS 14 or later (Thunderbolt 5 Macs need macOS 15.3+), Windows 10 and 11 (Thunderbolt 5 PCs need Windows 11), iPadOS, ChromeOS and Linux.

Use Cases / Ideal For

• Laptop-based studios with Thunderbolt audio interfaces and SSDs
• Video editors offloading cards and cutting from fast storage
• Multi-monitor desks on Thunderbolt 5 laptops

Pros & Cons

✅ Pros:

• Three full-speed Thunderbolt 5 device ports
• 140 W charging with SD, microSD, 2.5GbE and audio on board
• Silent, fanless aluminum housing

⚠️ Cons:

• No HDMI or DisplayPort; screens connect over Thunderbolt or USB-C (or an adapter)
• Macs are limited to two external displays through the dock
• External power supply adds a brick to the desk

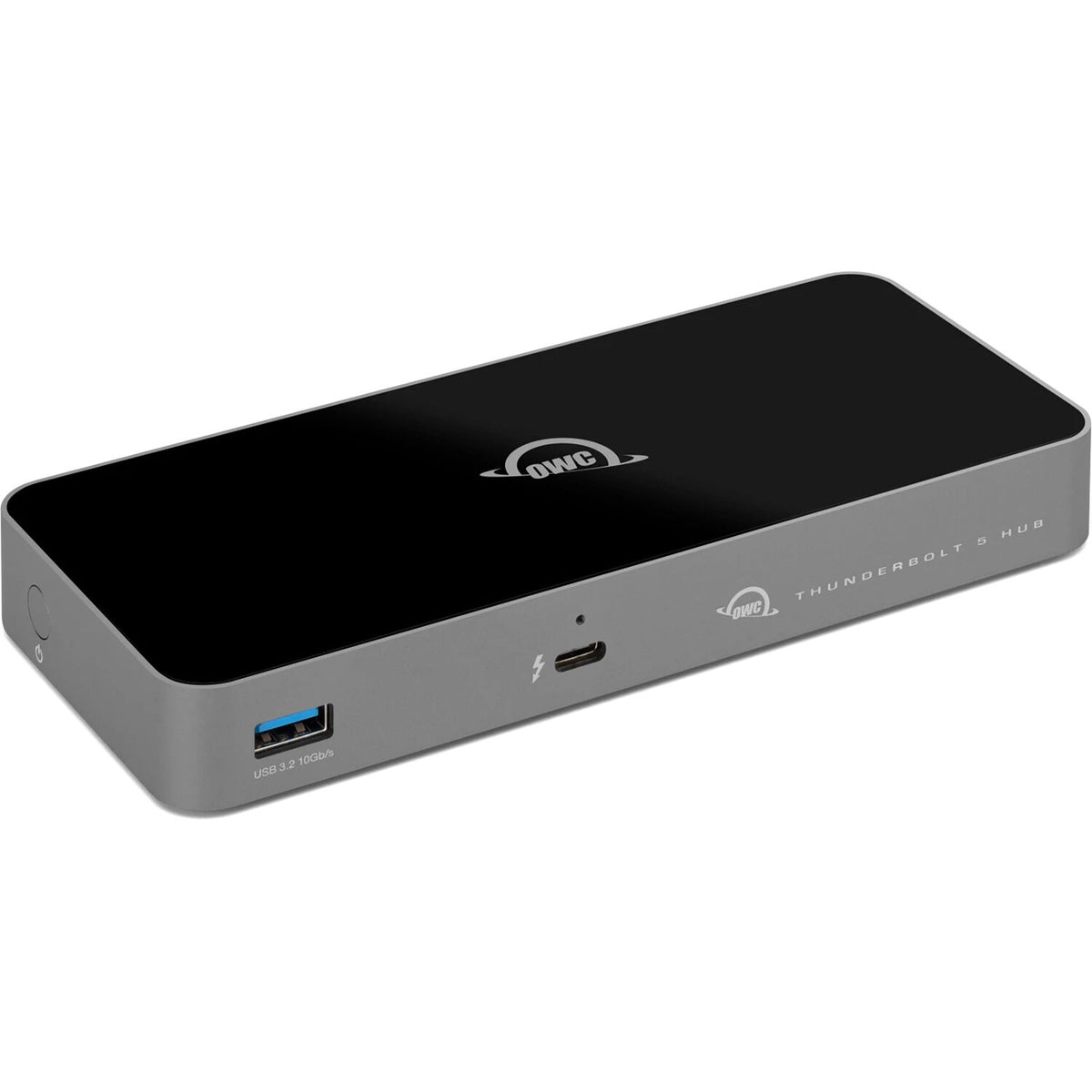

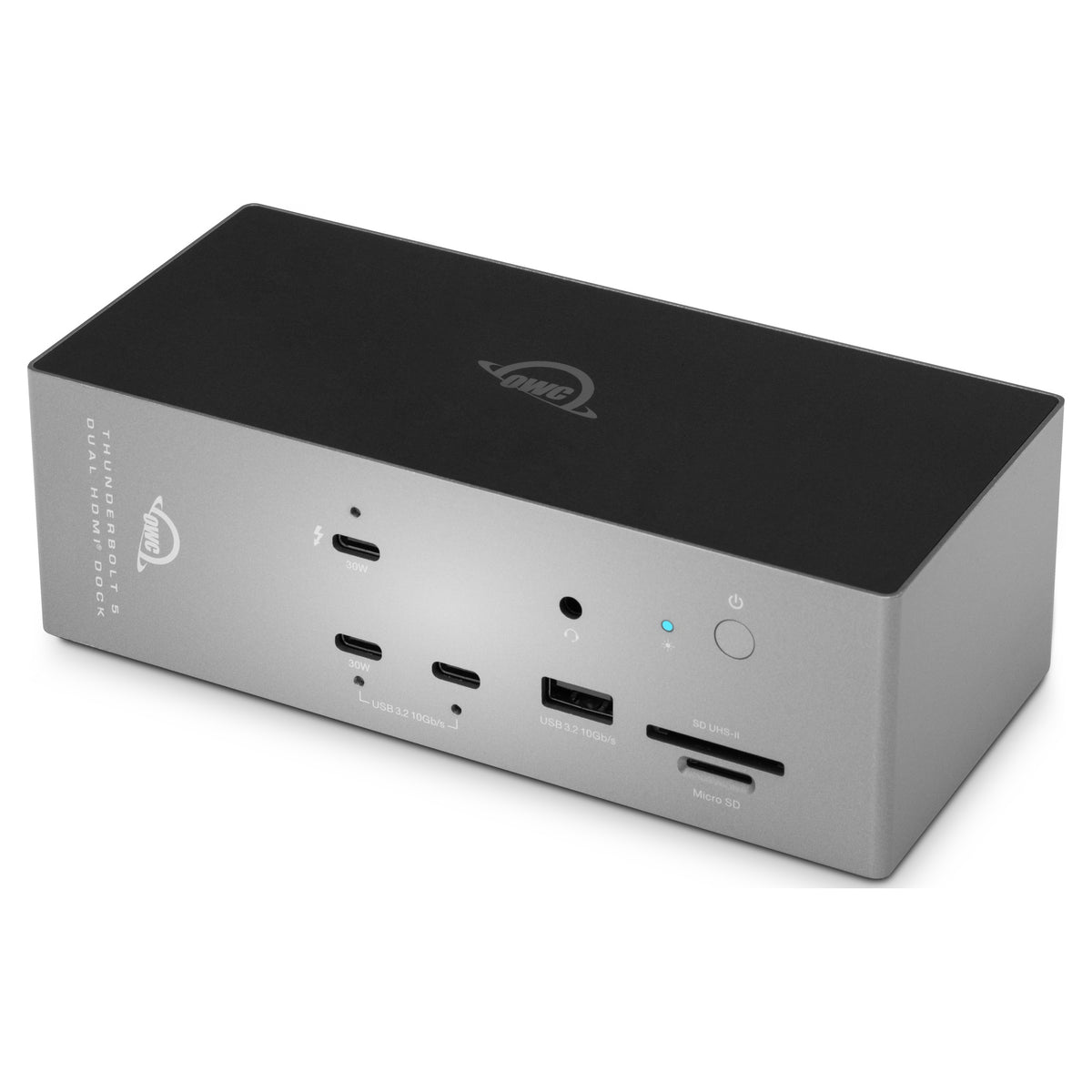

For most Thunderbolt 5 laptops this is the OWC dock that covers every port type without going to extremes. Compare it with the Dual HDMI and Dual 10GbE versions in the model row above, all available at Soundium.
